POWER
11-58T Max Torque 305 N·m (Max Torque of rear wheel: 305 / N-m Top speed: 75 km/h)
Battery
74V / 35Ah, 2480Wh, LG Premium 21700 lithium cells, removable, can be charged on a bike or separately.
Brakes
Front and Rear 4-piston DOT hydraulic with 210mm disc
Charging
2-3h with Quick Charge Function
Controller
Sine wave, Best-in-class power density, and state-of-the-art motor control algorithms.
Electric motor
Air-cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive
Drivetrain
Electric motor: Air cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420 chain with DX

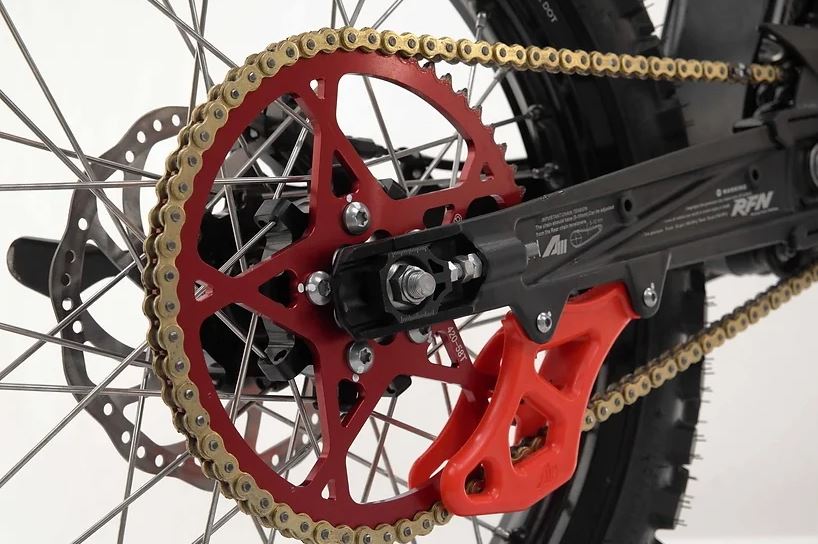

Sprocket: 13T counter sprocket -58T rear sprocket
Rated power: 5 kW
Peak power: 12.5 kW**
Max Torque of motor: 58 N·m
Max Torque of rear wheel: 305 N·m
Dimensions
Fork angle: 340mm - 13.39''
Offset: 15mm in triple clamps, 45mm in forks.
Seat height: 860mm - 33.86''
Trail: 111mm - 4.37''
Wheelbase: 1330mm - 52.36''
Fenders & Bodywork
Material: PP/ABS plastic
Frame
Build: 6082 aluminum extruded, forged, CNC machined, and steel frame.
Front Suspension
Upside Down, 200mm travel, Fully adjustable
Handlebar
6061 aluminum, 760mm length
Handlebar
6061 aluminum, 760mm length
Rear Suspension
Mono-Shock, 74mm travel, adjustable
Regulatory
Certificate: CE
Ride modes
Mode 1: Tortoise mode: The ultimate mode of energy conservation exploration. Limited to 25 km/h with 3.5 hours battery range.
Mode 2: Rabbit mode: Enduro or active trail riding. 1-2 h riding time.
Mode 3: Rocket mode: Track and race mode, maximal torque and speed, riding time up to 9 Sec.
Mode 4: Reverse mode: Limited to 9 km/h.
Speed & Range
Range: 160 Km (Test data Load: 75 Kg, 20 Km/h uniform speed, ambient temperature: 25 °C, flat pavement, standard tires, standard tire pressure)
Top speed: 65km/h
Weight
N.W of Battery: 15 kg (33 lbs)
N.W of whole bike: 68 kg (150 lbs)
Max load: 120kg (265 lbs)
Wheels & Tires
Hubs: Forged and CNC aluminium RFN hubs with 20mm axle.
Rims: F 19"/ R 18" (Motorcycle standard) re-inforced, triple chamber, 7050 aluminium.
Tires: F: CST CM721 70/100-19 off-road , R: CST CM722 90/100-18 off-road
